Challenge

Nicknamed “America’s Main Street,” Pennsylvania Avenue NW in Washington, DC is located between the White House and the Capitol.  This historic thoroughfare regularly hosts presidents, dignitaries, and tourists, while also serving a vital role in moving residents and workers from the area. In the past, Pennsylvania Avenue functioned as a major corridor across the city. However, the use of the avenue has changed over time and no longer serves the amount of vehicular through traffic the current configuration was designed to. The additional capacity has created a rare opportunity in the District to consider repurposing available right-of-way to allow Pennsylvania Avenue NW to better serve the many users of this iconic avenue.

Solution

The Kittelson team began by working with different stakeholders to determine the roadway’s necessary travel capacity and understand how to activate the avenue using the DDOT Performance Measures Toolbox, which Kittelson helped to create. The group worked to establish goals and objectives for this effort, addressing various needs, including curbside access, vehicle operations, transit operations, public space design, and ceremonial design. Kittelson then reviewed the regional travel demand model to identify growth rates in the area.

The team established a multitude of design options using a building block approach. We looked at cycle track options, bus only lanes, transitways, and asymmetrical designs. Ultimately the team narrowed these down to individual pieces and combined into three options, one with four through lanes, another with six, and a third with eight. Transit operations were evaluated by analyzing bus runs, boarding, and alighting volumes, and delay. And finally, pick-up and drop-off (PUDO) activity was observed to understand where and how much curb space should be allocated for this use. Our alternatives were aimed at providing transit, walking, and biking facilities while preserving the ceremonial grandeur of historic Pennsylvania Avenue.

Ariel photo of the existing conditions of Pennsylvania Avenue 3D Visualization Specialist Job Opening

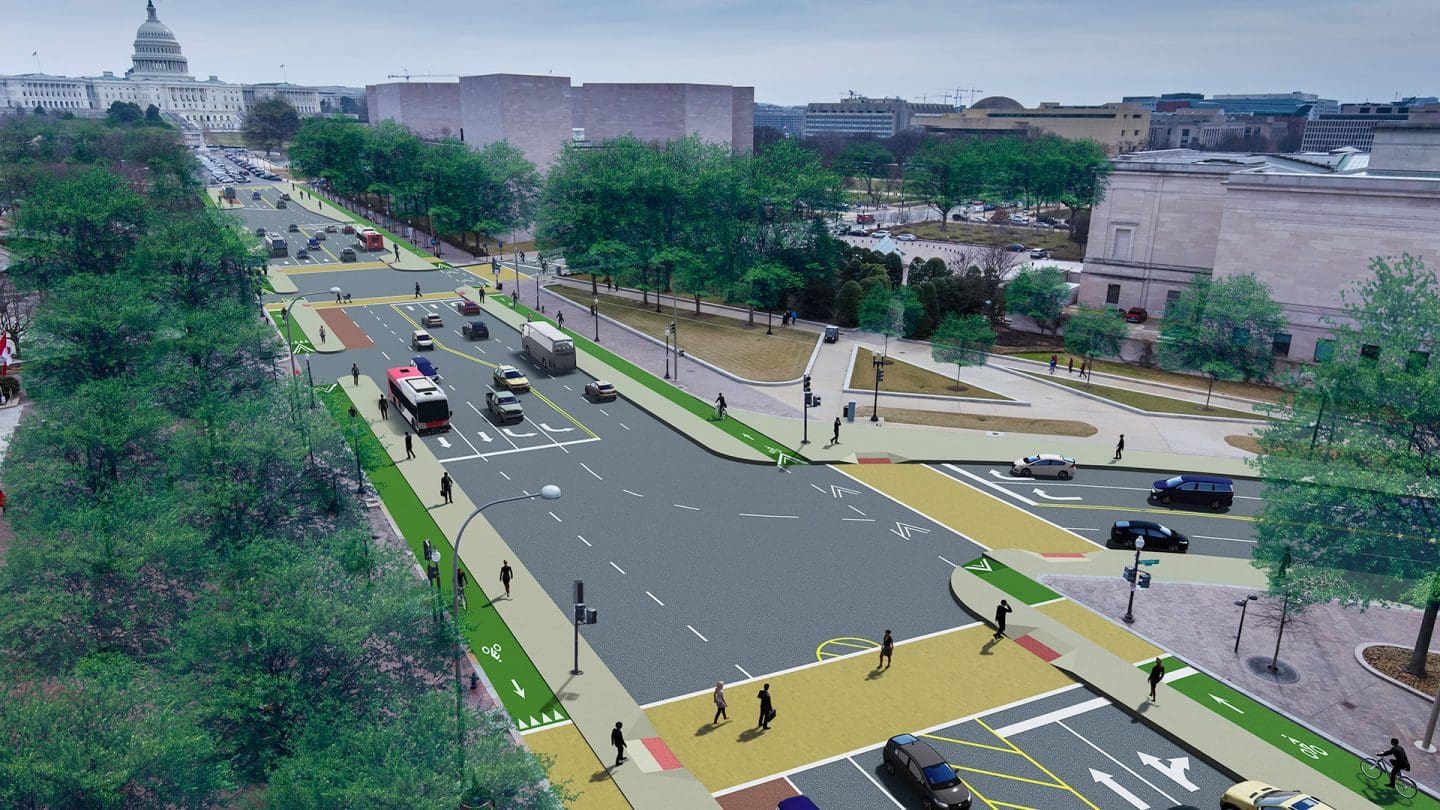

Ariel photo option 2 changes to Pennsylvania Avenue 3D Visualization Specialist job post
Ariel photo option 2 changes to Pennsylvania Avenue

The Outcome

Transforming "America's Main Street"

Kittelson developed alternatives for the historic corridor that preserve Pennsylvania Avenue’s ceremonial function while meeting the local and national transportation needs of a 21st-century capital city by providing facilities for transit, walking, and biking. Our collaborative process was instrumental in ensuring that the alternatives accommodate the multimodal travel demand in the corridor, create a minimum of 20 linear feet of space that could be repurposed to activate the street, and satisfy the divergent needs of agency stakeholders.

Office

Washington, DC

Client

District Department of Transportation

Location

Washington, DC

Team

Services
